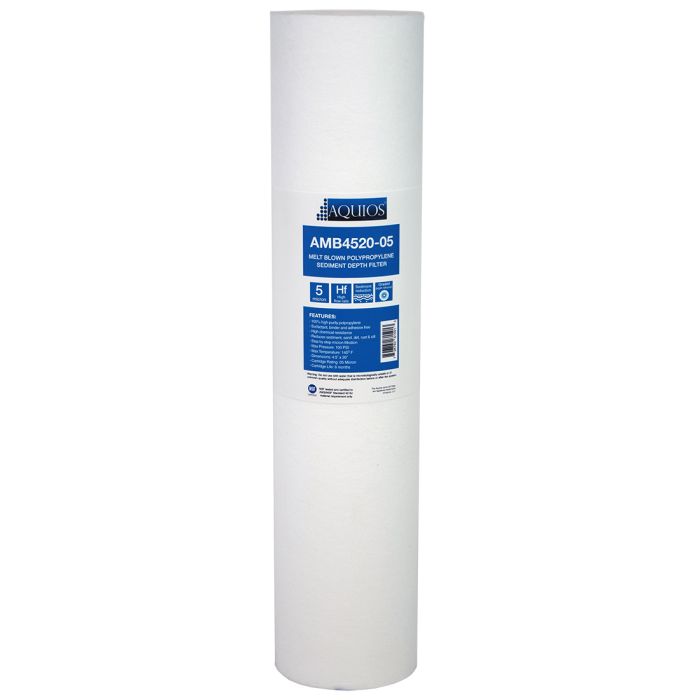

Aquios® AMB4520-05 Big Blue Sediment Depth Filter Cartridge, 20 inch
The Aquios® AMB4520-05 Whole House, Reverse Osmosis System, Commercial Use Sediment Depth Water Filter Cartridge, 4.5” x 20” – 5 Micron, Replaces SDC-25-2005, P5-20, wp-560085, EC210, FPMB20
- Powerful first line of water filtration: 5 micron sediment depth cartridge specifically designed to remove sediment, dirt, silt, sand and rust from water. Used as a first stage or pre-filtration to protect and prolong the life of secondary filters.
- NSF/ANSI standard 42 certified, 100% pure polypropylene fibers with no adhesives or binders.
- High dirt loading capacity with exceptional flow rates. • Excellent for pre-filtration for RO Systems, Point of Use (POU) systems, Under Sink, Point of Entry (POE) systems, as well as commercial and municipal water treatment applications.
- Available in 5 to 50 microns.
- Fits most standard 20” housings.
You already know Aquios® for our salt-free water softeners and filtration systems.
What you may not know is that we also provide water filtration systems, water filters, RO systems and more. Our AMB4520 Series of filters are our 100% pure polypropylene sediment depth filters designed for pre-filtration applications for RO systems, whole house water filters and commercial systems. Our AMB4520 cartridges are 4.5” x 20” and are available in a micron rating of 5 to 50. Our cartridges come with a coreless design that is lightweight but with commercial grade structural integrity to ensure performance while being cost effective.
The Aquios® ASD Series of sediment filter cartridges are a cost effective solution to pre-filtration for many applications. They are used in pre-filtration for RO systems and post-filtration for GAC filters. They are utilized in numerous applications such as film processing, ice machines, beverage manufacturing, municipal water filtration and more.
Aquios® sediment depth cartridges utilize a special matrix spun polypropylene layer designed to trap coarse and fine particles which increases reliability and service life over conventional sediment cartridges. By using this special matrix technology, the ASD Series cartridges do not use any binders, anti-static agents or surfactants to product an ideal surface filtration area.
These cartridges are manufactured with a precise and even matrix of polypropylene fibers which results in no foaming and are anti-static. The AMB Series sediment filter cartridges are made with FDA approved polypropylene, are extremely resistant to chemicals and are safe and effective to use in a wide range of applications. The ASD Series are NSF/ANSI Certified to Standard 42 and comply with FDA CFR 21 guidelines.
Applications
- Reverse Osmosis Pre-Filtration
- Food & Beverage Water Filtration
- Electronic Industry Filtration
- Commercial & Residential Water Filtration
- Ultra Filtration
- Chemical Liquid
- Ink, Paint, Plating Applications
Specifications
- Maximum Operating Temperature: 145°F (63°C)
- Dimensions: 4.5" x 20"
- Maximum Flow Rate: 6-15 gpm (depending on micron rating)
- Filter Media: 100% Polypropylene
- Micron Rating: 1 to 50
- Recommended Replacement Pressure Drop: 21.75 psi
- Cartridge Life: 6 months
